OUR MISSION & VISION STATEMENT
MISSION STATEMENT
To use engineering and project implementation management and dredging capabilities to enhance
Lagos coastal area. We
intend to achieve this by supplying a high volume of quality sharp sand at less than 4% silt and
mud,
with coarseness between
2.4 to 2.8 gradesuitable for civil engineering construction, shoreline protection, and land
reclamation to the
satisfaction of our client
VISION STATEMENT
To be the leading indigenous dredging company delivering reclaimed land to needed coastal areas of
Lagos state. Given the
vast reservoir of sharp sand in Lagos lagoon, we intend to be the first indigenous company in
the country to bag white
sharp sand for distribution across Nigeria and export the same abroad.
OUR CORE SERVICES
In the last 7 years dredging activities have been at the center of our business. We did touch on
all aspects of dredging
project, which includes the following:
- Sand stockpile, trucking & supply logistics; - Land reclamation project;

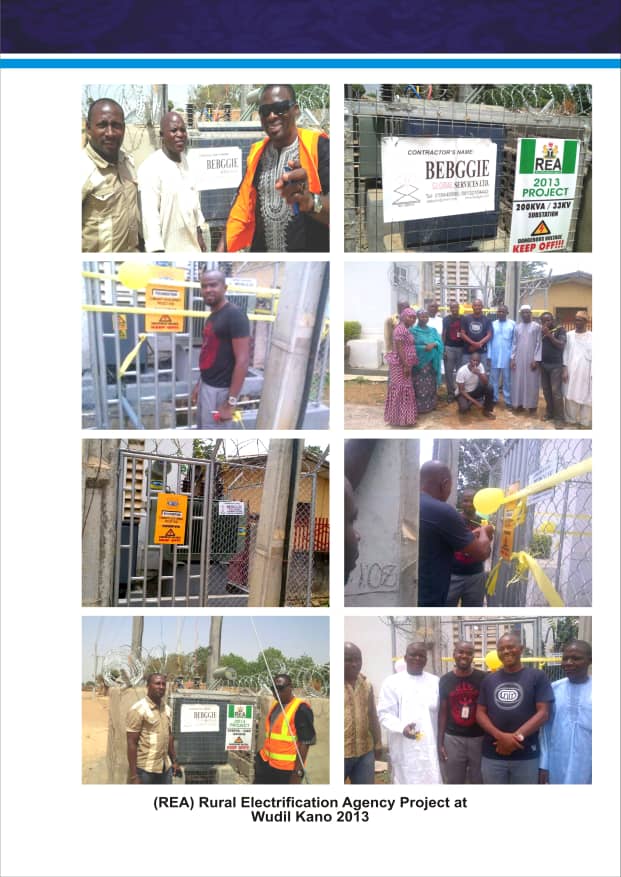

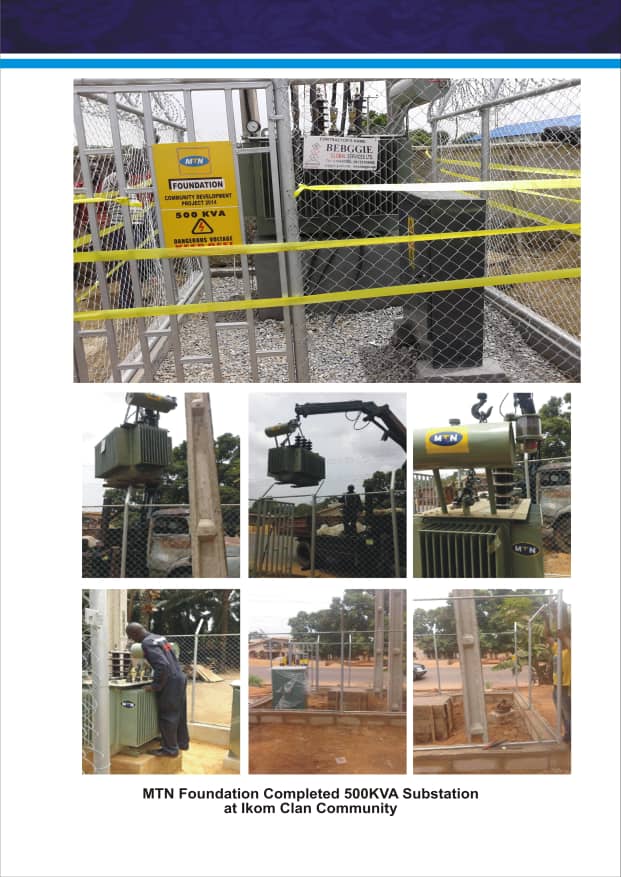

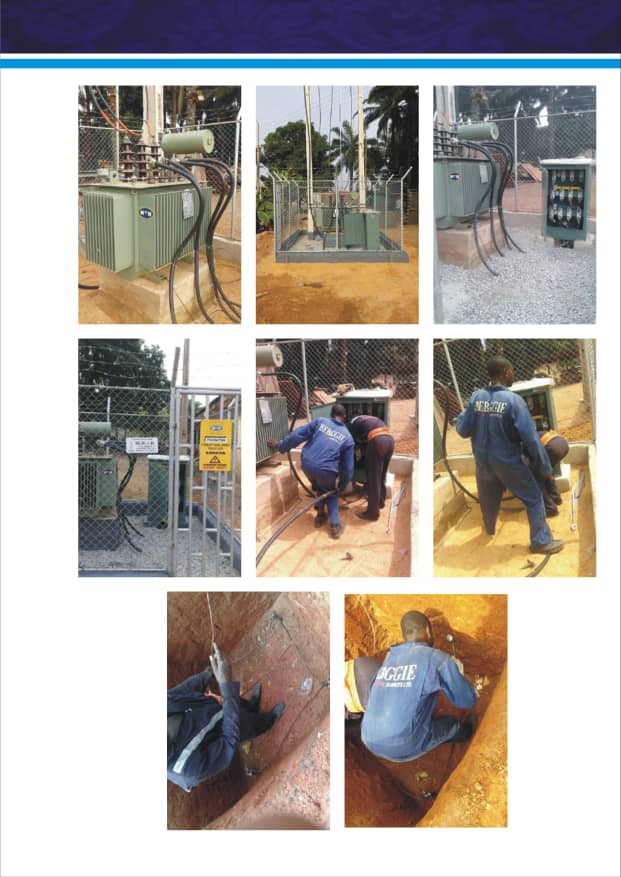

- Dredger construction & fabrication; - Harbour sweeping & channelization project; -
Distribution
transformer installation
project
See in the table below a list of several contracts we have executed. In 2017, we had dredged and
stockpiled over 200,000
cubic of coarse sand from Bayeku waterfront in Ikorodu LGA of Lagos State, using our newly
acquired 400hp, 3406
Caterpillar engine powered suction
dredger, with a 10-inch pump and discharging at a distance of about 250 meters from the lagoon
to shore. The Dredger was
fabricated by us and assembled right there in our yard at Bayeku Ikorodu Lagos.
WHAT WE CAN DO FOR YOU

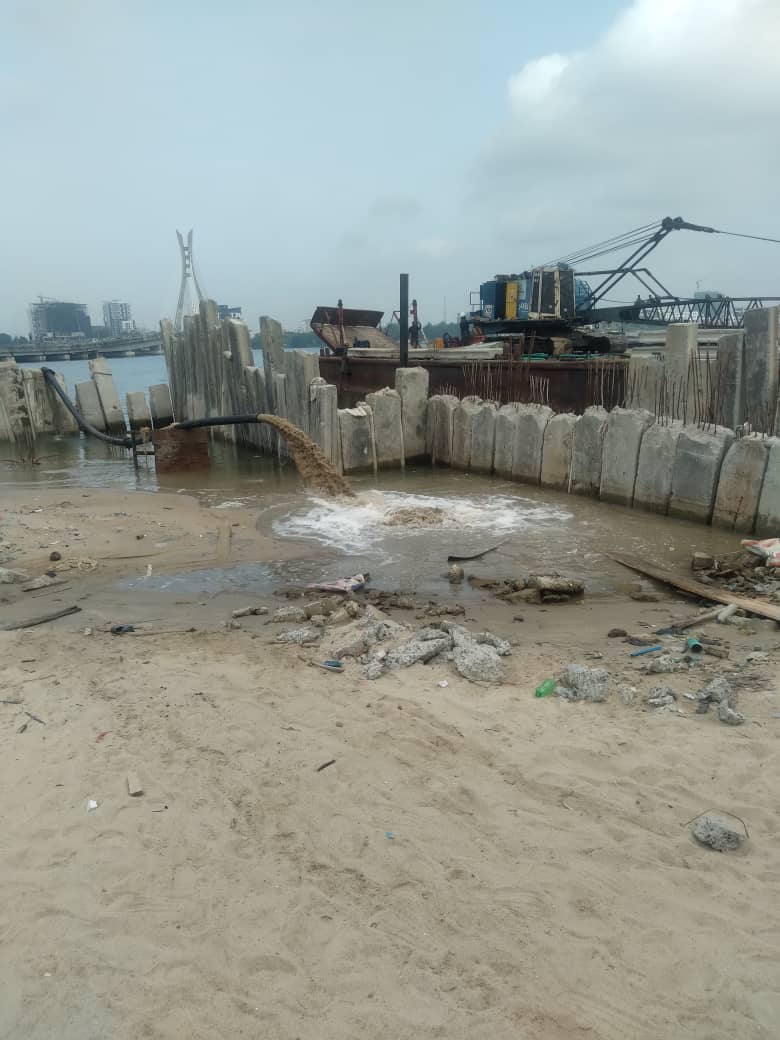

We have the capacity and capability in terms of expertise and equipment to deploy to any site to
dredge and reclaim land
whether at the lagoon waterfront or ocean waterfront.

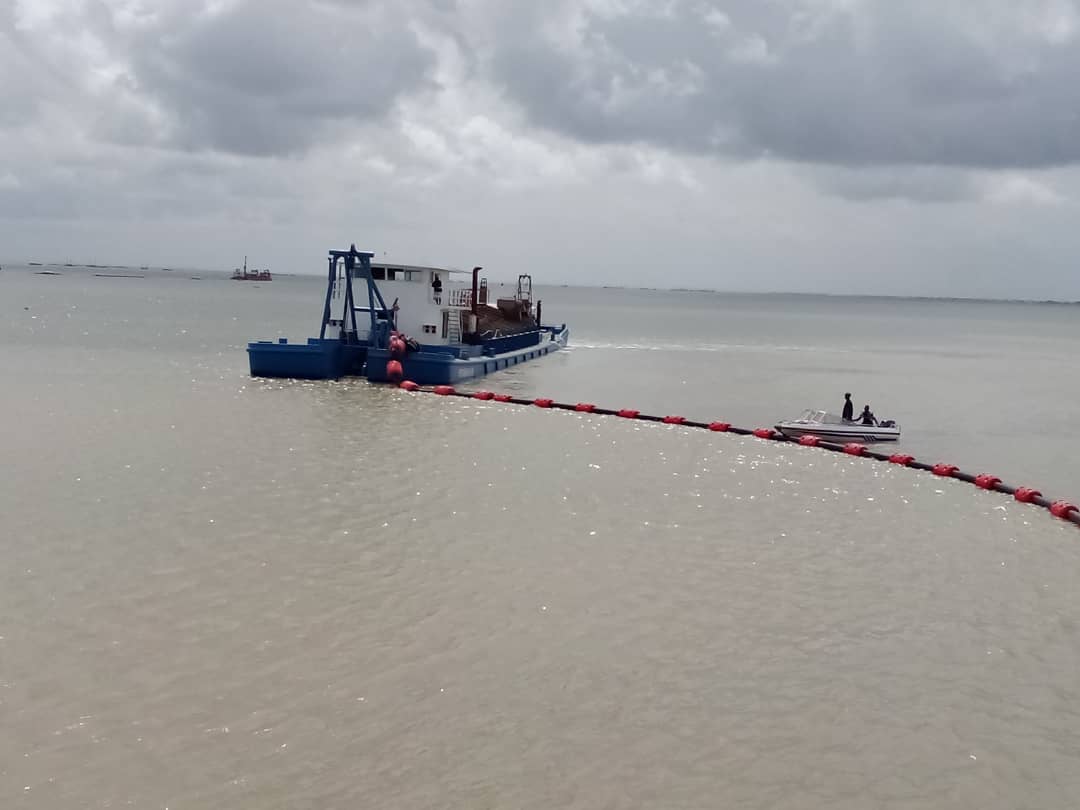

We have newly brought in to Lagos through our Chinese partners a large hopper dredger of 800
cubic capacity that can
deliver about 2,400 cubic of quality sharp sand in less than 24 hours. The dredger is new and
possibly one of the
biggest hopper dredgers right now on Lagos lagoon. We have two of them at the moment, named
FENGSHENG DREDGER 01 & 02.
Only FENGSHENG 01 is in operation at the moment.
DREDGER TECHNICAL SPECIFICATION
Name is FENGSHENG 01, it's a hopper dredger design with long discharge pipes
Length =50.38m
Width =10.20m
Height =3.40m
Pump suction size is 18"
Pump discharge size is 18"
Pumping distance is 400m - 500m max. Time for full capacity loading = 2 hrs
Time for full capacity discharge = 21⁄2 hrs
Average speed when loaded = 12km/hr
Average speed when unloaded =14km/hr
Length of suction sucker = 25m (can be adjusted to reach 30m) Operating captain is
Chinese & Nigerian crew
Main engine brand - Cummins model nia855-dm is 284kw, 450hp.gear model is r6160zd-4 case hd400a
Steel sheet size is 8mm &12mm plates
Twin propeller engine at power rating is 250kw (350hp) for movement Loaded draft = 4.5m
